利用树莓派的一张有线网卡和一张无线网卡，将wifi转为有线信号，使无网卡设备可以网线直连树莓派进行上网

起因

手边有个丐版的NUC主板，没有wifi没有蓝牙，只有两个有线网口，但是房间的地方离主路由器太远，拉网线连接非常不方便。本着能用则用的原则，正好这次回家把树莓派一起带上了，就压榨一下树莓派的两张网卡，让这个NUC主板上网。另外说明一下，树莓派和NUC主板都是无屏幕的，必要时是用视频采集卡在我的笔记本电脑屏幕上显示，大部分操作都可以通过ssh完成。

设备/环境介绍

主路由器：广电网络，基本没有操作空间

旁路由（以下用树莓派代指）：树莓派4B 4G，arrch，Ubuntu20.04，一个有线网口(eth0)，一个无线网卡(wlan0)

需联网设备（以下用nuc代指）：工控主板，amd，Ubuntu20.04，双有限网口，无无线网卡

PC：笔记本，Windows11，无网口

主路由网关：192.168.1.1

旁路由ip：192.168.1.24

计划配置服务：DHCP范围172.21.252.2-172.21.252.254；网关地址为172.21.252.1

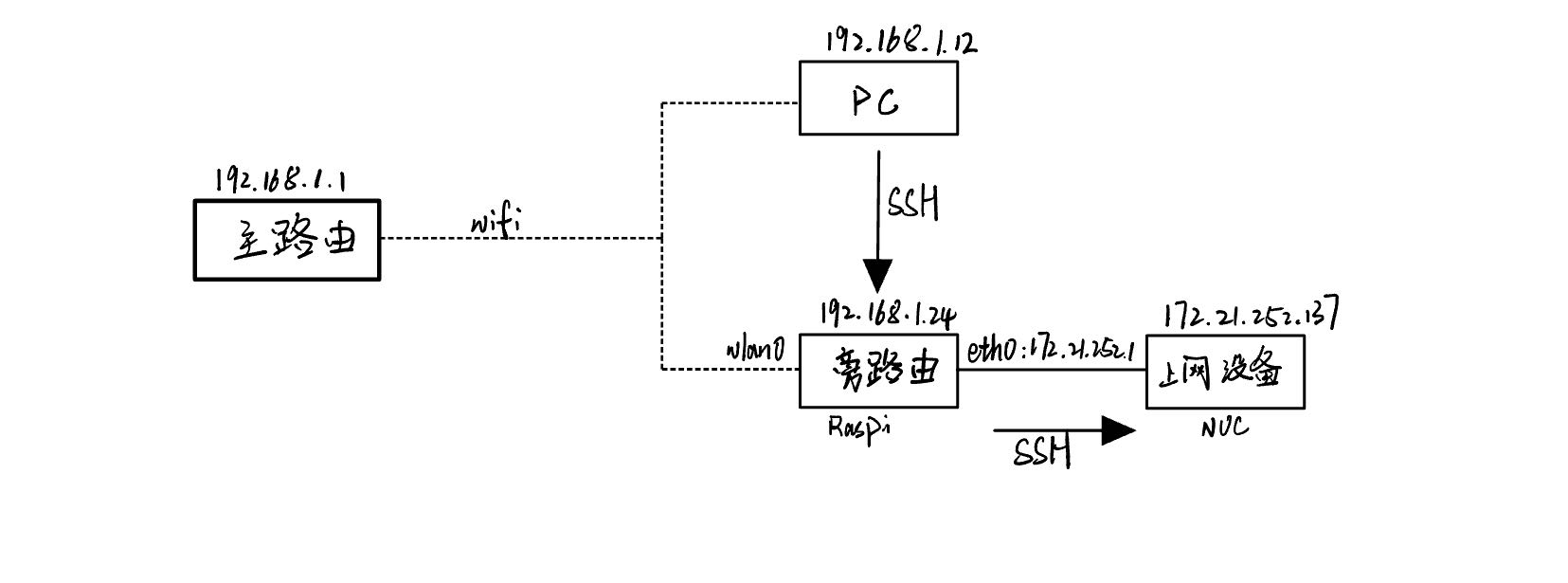

示意图：

connect

配置过程

前置准备

确保树莓派已连接wifi，使用PC连接SSH

1
ssh ubuntu@192.168.1.24

配置树莓派eth0接口

开启eth0，并指定ip为172.21.252.1

1
ifconfig eth0 172.21.252.1 netmask 255.255.255.0 up

配置DHCP服务

使用dnsmasq为eth0网卡提供DHCP服务

安装dnsmasq

1
sudo apt install dnsmasq

添加/etc/dnsmasq.conf配置

1
sudo nano /etc/dnsmasq.conf
1
2
3
4
port=0
interface=eth0
listen-address=172.21.252.1
dhcp-range=172.21.252.2,172.21.252.254,12h

解释一下配置参数

  • interface=eth0是设置dhcp服务的接口为树莓派上的有线网卡
  • listen-address=172.21.252.1是将监听地址设为有限网卡的ip地址
  • dhcp-range=172.21.252.2,172.21.252.254,12h是设置DHCP分配的ip范围，从172.21.252.2到172.21.252.254，租赁时限为12h
  • 要注意这里如果不设置 port=0会开启dns服务，但是我们不需要，设为0就标识关闭dns服务，如果不设置的话可能会出现下面报错，意思是端口53已经被占用了，解决方法可以关闭dns服务或将其设为其他端口，比如5533
1
2
3
4
5
6
7
8
Jan 16 02:49:30 ubuntu systemd[1]: Starting dnsmasq - A lightweight DHCP and caching DNS server...
Jan 16 02:49:30 ubuntu dnsmasq[1570]: dnsmasq: syntax check OK.
Jan 16 02:49:31 ubuntu dnsmasq[1571]: dnsmasq: failed to create listening socket for port 53: Address already in use
Jan 16 02:49:31 ubuntu dnsmasq[1571]: failed to create listening socket for port 53: Address already in use
Jan 16 02:49:31 ubuntu dnsmasq[1571]: FAILED to start up
Jan 16 02:49:31 ubuntu systemd[1]: dnsmasq.service: Control process exited, code=exited, status=2/INVALIDARGUMENT
Jan 16 02:49:31 ubuntu systemd[1]: dnsmasq.service: Failed with result 'exit-code'.
Jan 16 02:49:31 ubuntu systemd[1]: Failed to start dnsmasq - A lightweight DHCP and caching DNS server.

重启dnsmasq服务

1
sudo systemctl restart dnsmasq

正确运行后执行sudo systemctl status dnsmasq输出应该大致如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
● dnsmasq.service - dnsmasq - A lightweight DHCP and caching DNS server
     Loaded: loaded (/lib/systemd/system/dnsmasq.service; enabled; vendor preset: enabled)
     Active: active (running) since Mon 2023-01-16 02:51:26 UTC; 1min 0s ago
    Process: 1606 ExecStartPre=/usr/sbin/dnsmasq --test (code=exited, status=0/SUCCESS)
    Process: 1607 ExecStart=/etc/init.d/dnsmasq systemd-exec (code=exited, status=0/SUCCESS)
    Process: 1616 ExecStartPost=/etc/init.d/dnsmasq systemd-start-resolvconf (code=exited, status=0/SUCCESS)
   Main PID: 1615 (dnsmasq)
      Tasks: 1 (limit: 4433)
     CGroup: /system.slice/dnsmasq.service
             └─1615 /usr/sbin/dnsmasq -x /run/dnsmasq/dnsmasq.pid -u dnsmasq -7 /etc/dnsmasq.d,.dpkg-dist,.dpkg-old,.dp>

Jan 16 02:51:25 ubuntu systemd[1]: Starting dnsmasq - A lightweight DHCP and caching DNS server...
Jan 16 02:51:25 ubuntu dnsmasq[1606]: dnsmasq: syntax check OK.
Jan 16 02:51:26 ubuntu dnsmasq[1615]: started, version 2.80 DNS disabled
Jan 16 02:51:26 ubuntu dnsmasq[1615]: compile time options: IPv6 GNU-getopt DBus i18n IDN DHCP DHCPv6 no-Lua TFTP connt>
Jan 16 02:51:26 ubuntu dnsmasq-dhcp[1615]: DHCP, IP range 172.21.252.2 -- 172.21.252.254, lease time 12h
Jan 16 02:51:26 ubuntu systemd[1]: Started dnsmasq - A lightweight DHCP and caching DNS server.
lines 1-17/17 (END)

开启SNAT

Ubuntu20.04的ip_forward是默认关闭的，需要手动开启，编辑/etc/sysctl.conf文件找到net.ipv4.ip_forward=1这行取消注释

1
sudo nano /etc/sysctl.conf
防呆指引
Ctrl+W 输入 net.ipv4.ip_forward 回车定位所在位置
删除 # 取消注释并检测 net.ipv4.ip_forward=1
Ctrl+X 回车输入 y 回车保存并退出

配置snat连接到外部网络

1
iptables -t nat -A POSTROUTING -s 172.21.252.1/24 -o wlan0 -j MASQUERADE

其中172.21.252.1/24为DHCP的网段，wlan0为树莓派的的无线网卡

设置nuc联网

将树莓派与nuc使用网线连接，在树莓派上监听连接获取nuc的ip

ssh连接nuc

1
ssh ubuntu@172.21.252.137

这个时候nuc还是没办法通过域名访问外部网络的，需要设置nuc的DNS服务器地址

1
sudo nano /etc/resolv.conf

将nameserver 192.168.1.1写入文件，保存并退出现在ping baidu.com就能通了

设备网络信息

树莓派

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
eth0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST>  mtu 1500
        inet 172.21.252.1  netmask 255.255.255.0  broadcast 172.21.252.255
        inet6 fe80::dea6:32ff:fe46:33fa  prefixlen 64  scopeid 0x20<link>
        ether dc:a6:32:46:33:fa  txqueuelen 1000  (Ethernet)
        RX packets 383  bytes 65536 (65.5 KB)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 524  bytes 57530 (57.5 KB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

lo: flags=73<UP,LOOPBACK,RUNNING>  mtu 65536
        inet 127.0.0.1  netmask 255.0.0.0
        inet6 ::1  prefixlen 128  scopeid 0x10<host>
        loop  txqueuelen 1000  (Local Loopback)
        RX packets 212  bytes 17610 (17.6 KB)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 212  bytes 17610 (17.6 KB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

wlan0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST>  mtu 1500
        inet 192.168.1.24  netmask 255.255.255.0  broadcast 192.168.1.255
        ether dc:a6:32:46:33:fb  txqueuelen 1000  (Ethernet)
        RX packets 3670  bytes 583206 (583.2 KB)
        RX errors 0  dropped 2  overruns 0  frame 0
        TX packets 3837  bytes 796006 (796.0 KB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

nuc

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
enp2s0: flags=4099<UP,BROADCAST,MULTICAST>  mtu 1500
        ether 00:90:27:e9:01:b9  txqueuelen 1000  (以太网)
        RX packets 0  bytes 0 (0.0 B)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 0  bytes 0 (0.0 B)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0
        device memory 0x50800000-508fffff

enp3s0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST>  mtu 1500
        inet 172.21.252.137  netmask 255.255.255.0  broadcast 172.21.252.255
        inet6 fe80::108b:c57d:1fab:fe4a  prefixlen 64  scopeid 0x20<link>
        ether 00:90:27:e9:01:ba  txqueuelen 1000  (以太网)
        RX packets 472  bytes 52274 (52.2 KB)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 399  bytes 65238 (65.2 KB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0
        device memory 0x50500000-505fffff

lo: flags=73<UP,LOOPBACK,RUNNING>  mtu 65536
        inet 127.0.0.1  netmask 255.0.0.0
        inet6 ::1  prefixlen 128  scopeid 0x10<host>
        loop  txqueuelen 1000  (本地环回)
        RX packets 1998  bytes 145444 (145.4 KB)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 1998  bytes 145444 (145.4 KB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0
